Bianco Stainless Steel Jet Water Pump Controller Garden Irrigation High Suction Lifts BIA-INOX60S2NXT

A$429.00

Brand: Bianco
Model: BIA-INOX60S2NXT
Availability: In Stock

Qty

The pump is a self-priming surface mounted pressure system pump supplied with plug and play leads (IEC type). The self-priming ability provides excellent suction capacity of up to 9m. Used especially for supplying water to domestic installations. Used especially for supplying water to domestic installations and applications where a suction lift is required.

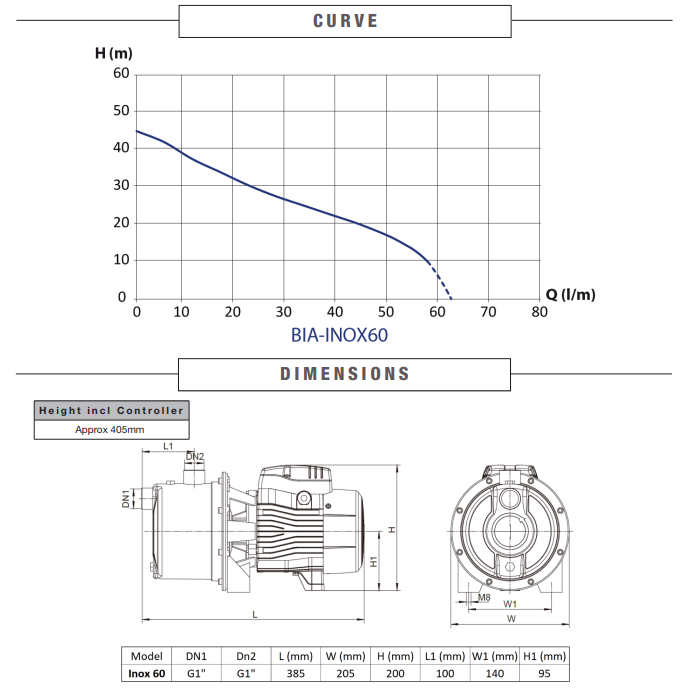

Performance Curve

FEATURES

Self-priming pumps and systems
Automatic pump control and dry-run protection
Pump body: Stainless Steel 304
Impeller: Noryl Glass Reinforced
Approved for potable water – AS/NZS 4020
Power: 600W
Max head: 42m
Max Flow: 57lpm
2 Year Warranty

LIQUID

Liquid Type: Clean Water
Clean water temperature range: +2 °C to +40 °C

MATERIALS

Pump body: Stainless Steel 304,Jet/Venturi, Diffuser
Impeller: Noryl Glass Reinforced
Mechanical seal: Carbon/Ceramic/Nitrile
O rings: Nitrile
Power Cable: 2m Cable H05 3G1.0

INSTALLATION

Maximum ambient temperature: +40 °C
Maximum operating pressure: 6 bar
Pipe connections suction/discharge: 1” BSPF / 1” BSPM

Documents

Features and technical specification of the product. Please contact us for further information and specifics.
Inlet	1 inch BSPF
Insulation Class	F
Outlet size	1 inch BSPM
Power	600W
Max Head	42m
Max Flow	57lpm
Voltage	230 V, 50 Hz
Warranty	2 Year
