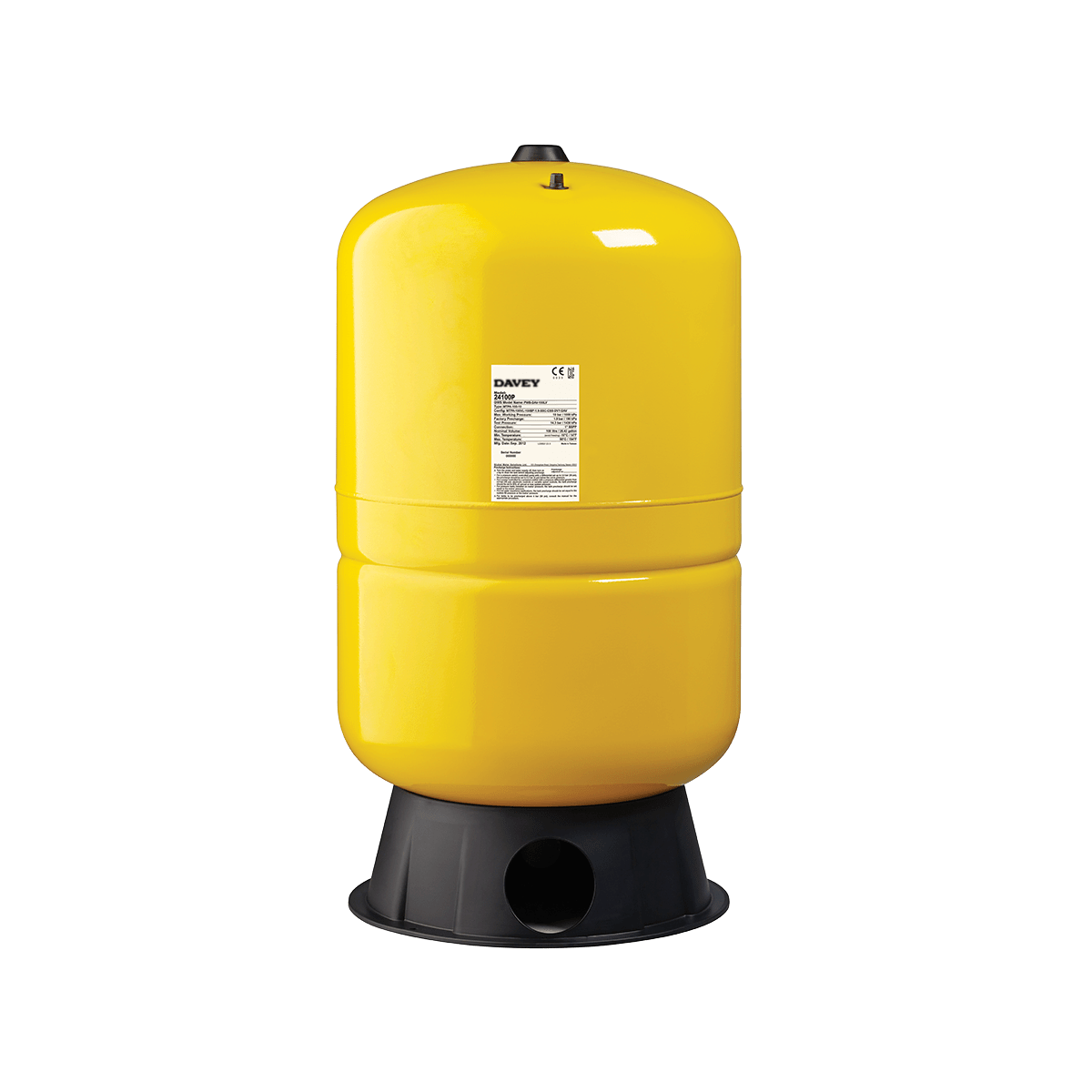

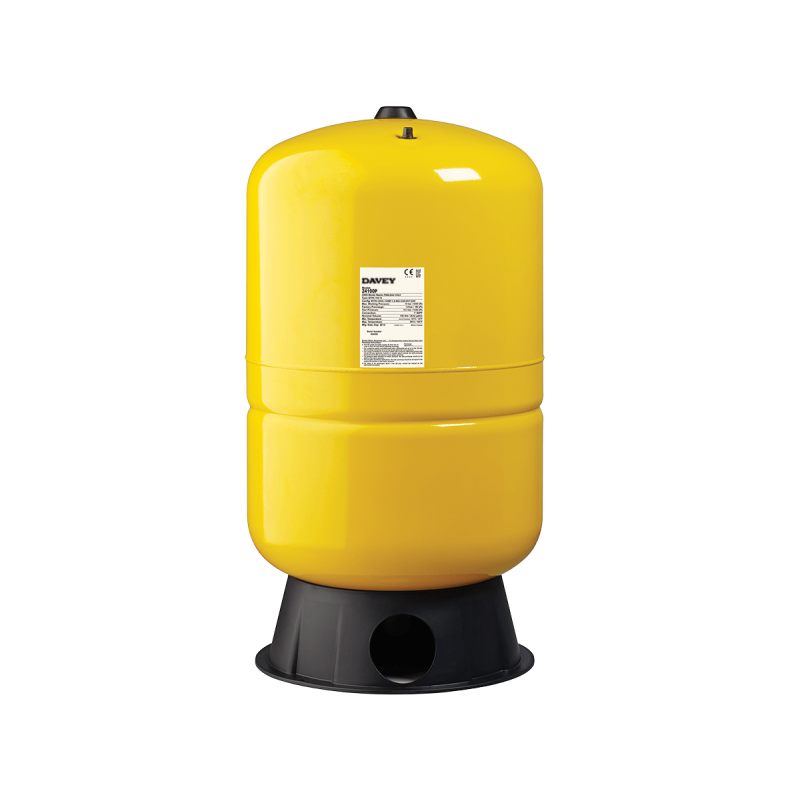

Davey Supercell 100L Pressure Tank (24100P)

A$419.00

Davey SuperCell steel tanks incorporate the latest internal designs for long tank life.

Robust hydro-pneumatic water pressure vessels of captive diaphragm design.

The new Davey Supercell "P" range of tanks are the direct replacement for the older Davey Supercell "C" range of tanks.

Captive diaphragm held firmly in a central position restricts movement allowing use of a thicker diaphragm material than a bag or bladder tank for longer life.
Heavy duty butyl diaphragm meets EEC requirements for potable water applications providing safe non toxic water storage.
Safe potable grade epoxy coating seals the water from the tank shell for long life.
Deep drawn steel shell with appliance like enamel finish protects against rusting for long life.

A range of capacities and pressures are available:

Model	Description	Capacity (L)	Maximum Pressure kPa	Mounting Type	Inlet	Diaphragm type
24008P	SuperCell 8P	8	1000	Pipe	1"M	Captive
24018P	SuperCell 18P	18	1000	Pipe	1"M	Captive
24040P	SuperCell 40P	40	1000	Pipe	1"M	Captive
24060P	SuperCell 60P	60	1000	Free Standing	1"F	Captive
24100P	SuperCell 100P	100	1000	Free Standing	1"F	Captive
24200G	SuperCell 200G	200	1000	Free Standing	1 ¼"F	Captive
24018PHP16	SuperCell 18PHP16	18	1600	Pipe	1"M	Captive
24080PHP16	SuperCell 80PHP16	80	1600	Free Standing	1"F	Captive
24024HP25	SuperCell 24 high pressure	24	2500	Pipe	1"M	Captive
24100HP25	SuperCell 100 high pressure	100	2500	Free Standing	1"M	Captive

Features and technical specification of the product. Please contact us for further information and specifics.
Litres	100 L
Max Pressure	1000 kPa
Maximum water temperature	90 C
Minimum water temperature	1 C
Mounting Type	Free Standing
Nominal Drawoff	37.5 L
Tank Shell	Steel
Warranty	5 Years
