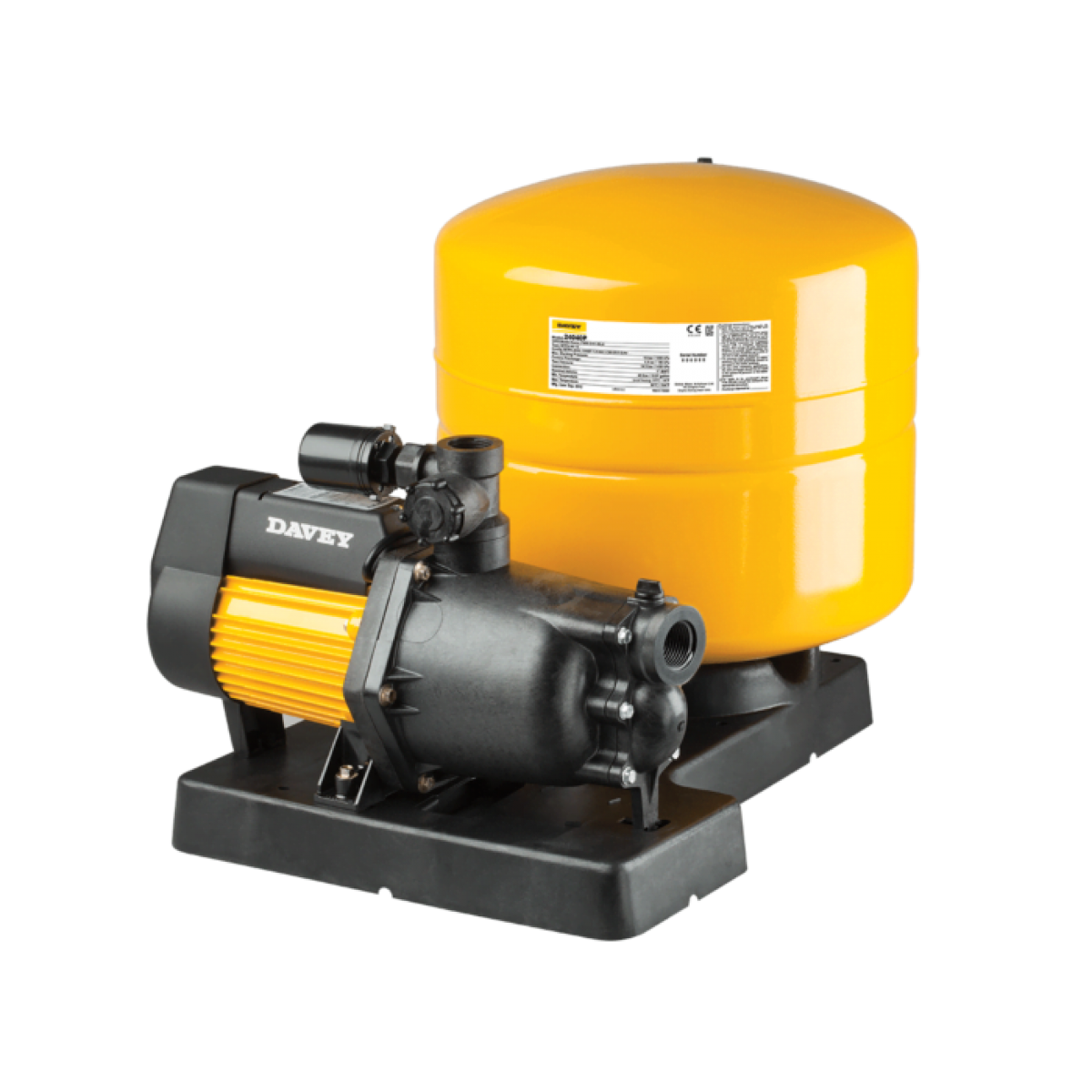

Davey X70 Dynajet with Supercell Systems Inlc 40P Tank & Pressure Swit
A$1,339.00
- Brand: Davey
- Model: X70
- Availability: In Stock
Compact and economical, single stage jet assisted water pressure system, operated by a pressure switch.
Ideal for average homes with modern appliances to large double storey homes, pressure boosting applications and for water transfer.
DESCRIPTION
Economical, compact 50, 70 and 90 lpm home pressure systems driven by a single stage jet assisted centrifugal pump.
Base mounted systems include Supercell 40P pressure vessel and pressure switch all mounted on one convenient base.
APPLICATIONS
- Ideal for average homes with modern appliances to large double story homes
- Domestic water supply
- Pressure boosting
- Automatic water transfer
Pump Curve
Dynajet X Range
| Type | Description | kW(P2) | Inlet | Outlet |
|---|---|---|---|---|
| 72531 | Dynajet X50 base mounted pressure system including 40P pressure tank | 0.58 | 1" | 1" |
| 72731 | Dynajet X70 base mounted pressure system including 40P pressure tank | 0.80 | 1 ¼” | 1" |
| 72931 | Dynajet X90 base mounted pressure system including 40P pressure tank | 1.10 | 1 ¼” | 1" |
Documents below are available for download
| Features and technical specification of the product. Please contact us for further information and specifics. | |
| Capacities to | 70 lpm |
| Max Suction Lift | 7m |
| Maximum water temperature | 50ºC |
| Pressure switch cut-in | 210 kPa |
| Max Head | 48m |
| Warranty | 2 Years |
