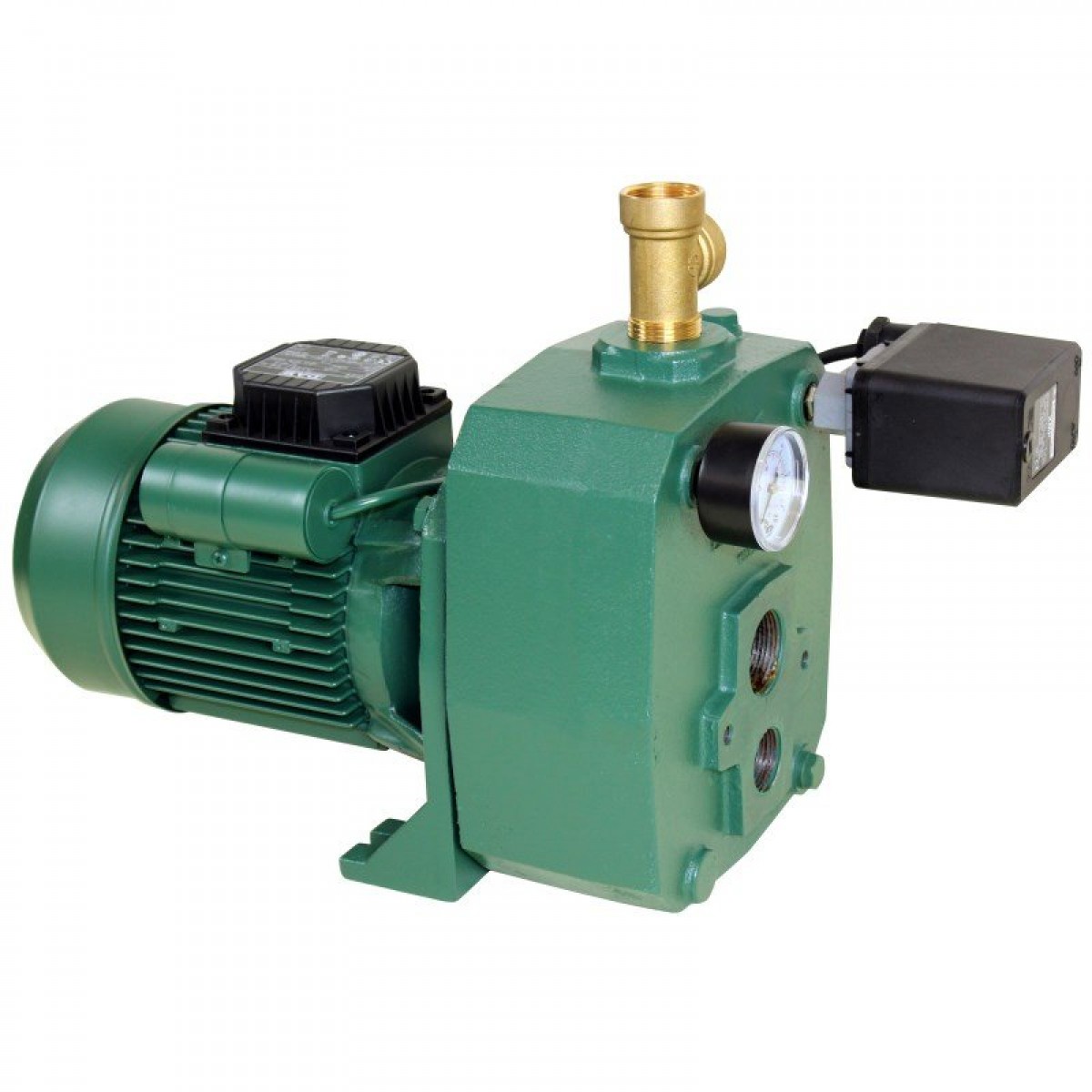

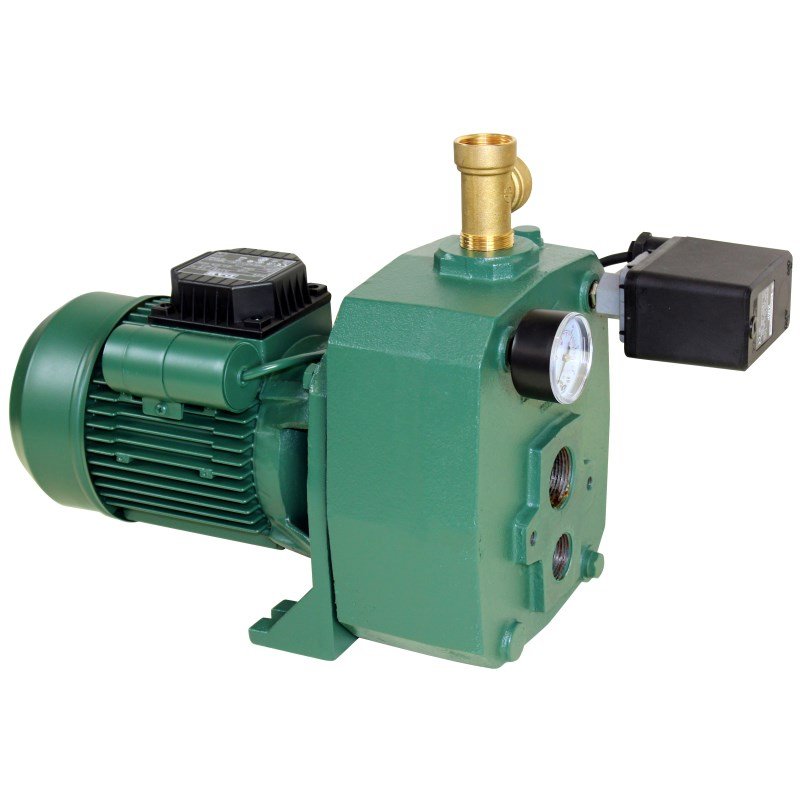

DAB-DP151MP - PUMP SURFACE MOUNTED DEEP WELL WITH PRESSURE SWITCH 58L/MIN 60M 1.1KW 240V

A$1,499.00

Qty

Deep Well Multistage Cast Iron Pressure Systems

1.1kW, 1.5hp, 240V, max hd 60m, max flow 58L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Note: Deep well injector kits sold seperately

Warranty

2 Year DAB Pumps Warranty

Location: The pump should be located as close to the water source as possible and should be protected from the elements
Piping: Only use pipe that is in good condition and free of rust or scale
Types of Pipe: Plastic or galvanised steel can be used with jet pumps
Water to Pump Piping: All offset piping should slope upwards from water source to pump.

PRODUCT DETAILS

The pump is a self-priming surface mounted deep well pump and has a suction capability of up to 27m with seperately supplied injector kit.

APPLICATIONS

• Domestic installations where a suction lift is required

• Pressure boosting, irrigation and wash down

• Designed for pumping from wells and from rivers and dams using offset.

FEATURES

• Pressure switch with adjustable differential

• Pressure gauge

• 240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage

• A pressure tank is required

Features and technical specification of the product. Please contact us for further information and specifics.
Bar	6 Bar
Inlet	1 1/4 inch BSPF inlet
Outlet size	1 inch BSPF outlet
Product Type	Multistage Jet Pump
Power	1.5 Hp, 608 kPa, 1.1 kW
Max Head	60 m
Max Flow	58 L/min
Voltage	240 V
Warranty	24 Months
