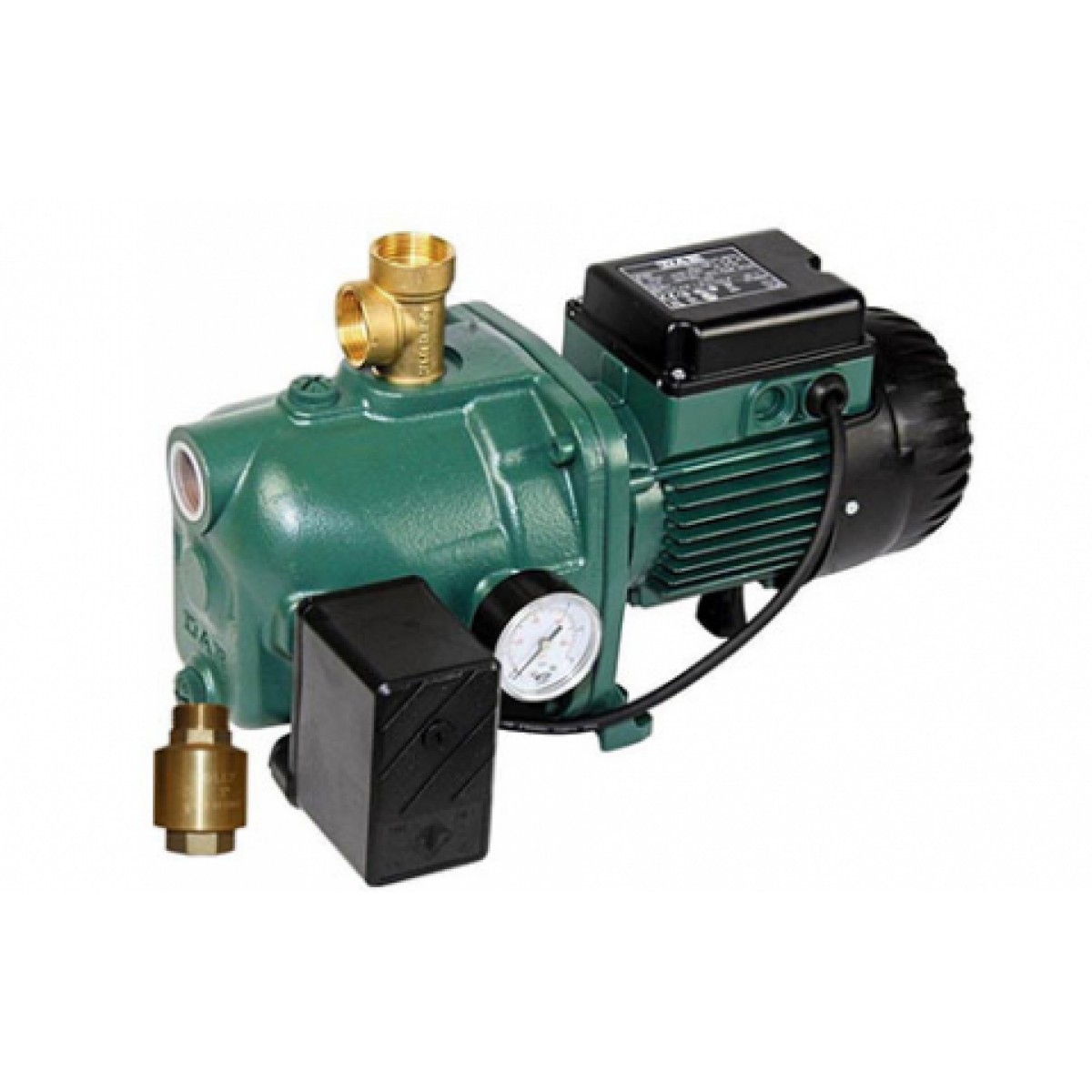

DAB-102MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 53.8M 0.75KW 240V

A$809.00

Qty

Description

Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general.

Includes non-return valve.

DAB Jet pumps are renowned for their unique self priming and extraordinary deep suction capability up to 9 meters at sea level.

All pressure switch controlled pumps must use a pressure tank (refer to Reflex pressure tanks).

0.75kW, 1.0hp, 240V, max hd 53.8m, max flow 60L/m, 6 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV

Features

Performance

curve94

Downloads

Features and technical specification of the product. Please contact us for further information and specifics.
Approval	Approved For Drinking Water
Bar	5.38 Bar
Inlet	1 inch BSPF inlet
Outlet size	1 inch BSPF outlet
Product Type	Pressure System
Power	1 Hp, 545 kPa, 0.75 kW
Max Head	53.8 m
Max Flow	60 L/min
Voltage	240 V
Warranty	24 Months
