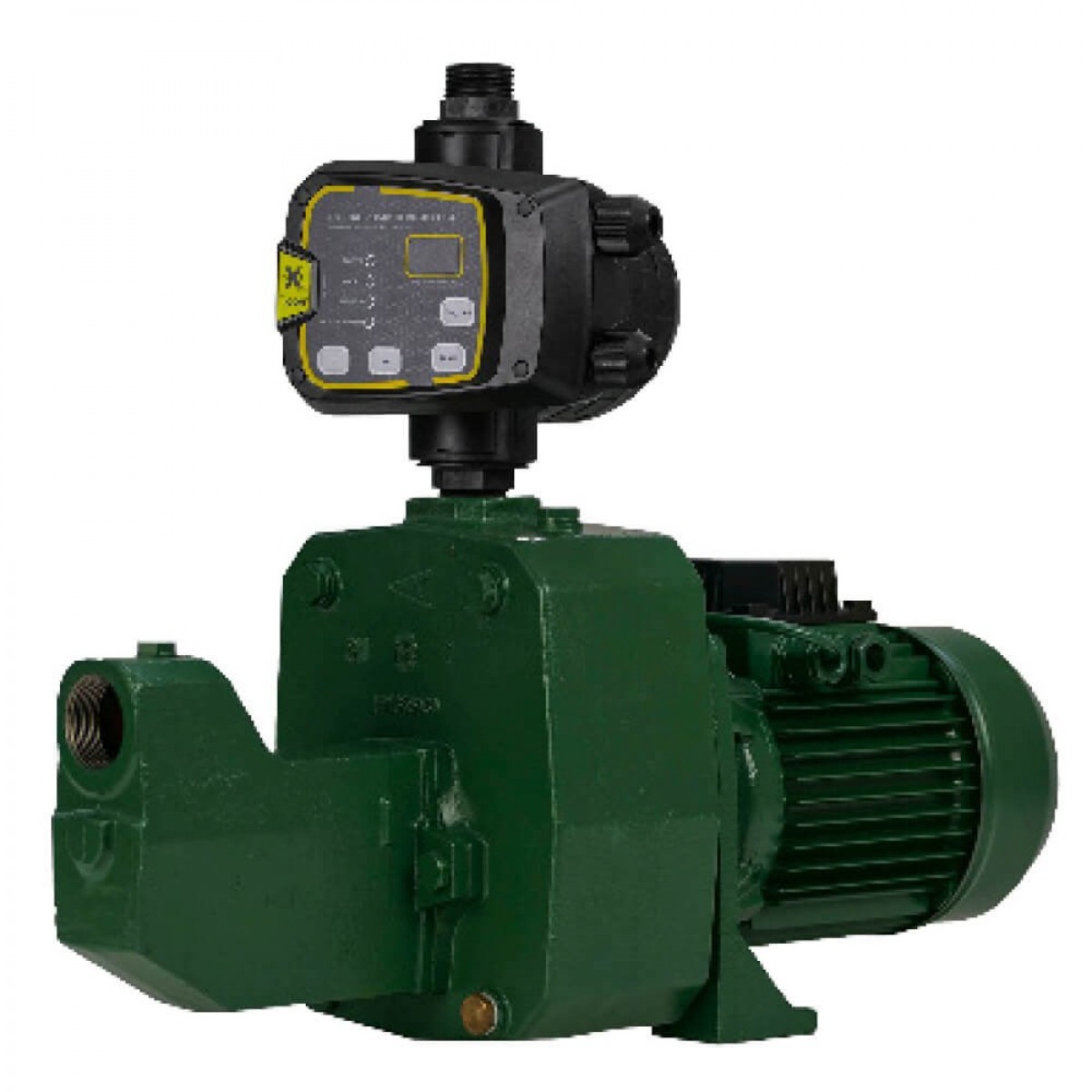

DAB-151NXTP - Cast Iron Jet Pump with nXt PRO Pump Controller 61m 1.1kW 240V

Description

Self-Priming Single and Multistage Jet Pressure Pumps

• Consructed from high quality cast iron for corrosion resistance and are for high head applications.

• Suitable for pumping from rivers, tanks and dams, irrigation and lawn watering applications.

• Self priming centrifugal pump with excellent suction capacity even when there are air bubbles.

• The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8 m.

DAB iCON Powered Pressure System

• Ideal for medium to large homes. Suitable for high density urban applications.

• 1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m, 7 taps. Ports 1-1/4” BSPF In, 1” BSPF Out. Controller with fully adjustable cut in pressure 0.5 to 6 bar.

Application

• Domestic installations where a suction lift is required

• Pressure boosting, irrigation and wash down

• Designed for pumping from tanks, rivers and dams.

Features

• Run dry protection to prevent pump damage

• The nXt controller has an in-built check valve to prevent water back-flow through the pump

• Self priming centrifugal pump with excellent suction capabilty

• 240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage

• A pressure tank is recommended

Warranty

2 Years Warranty
