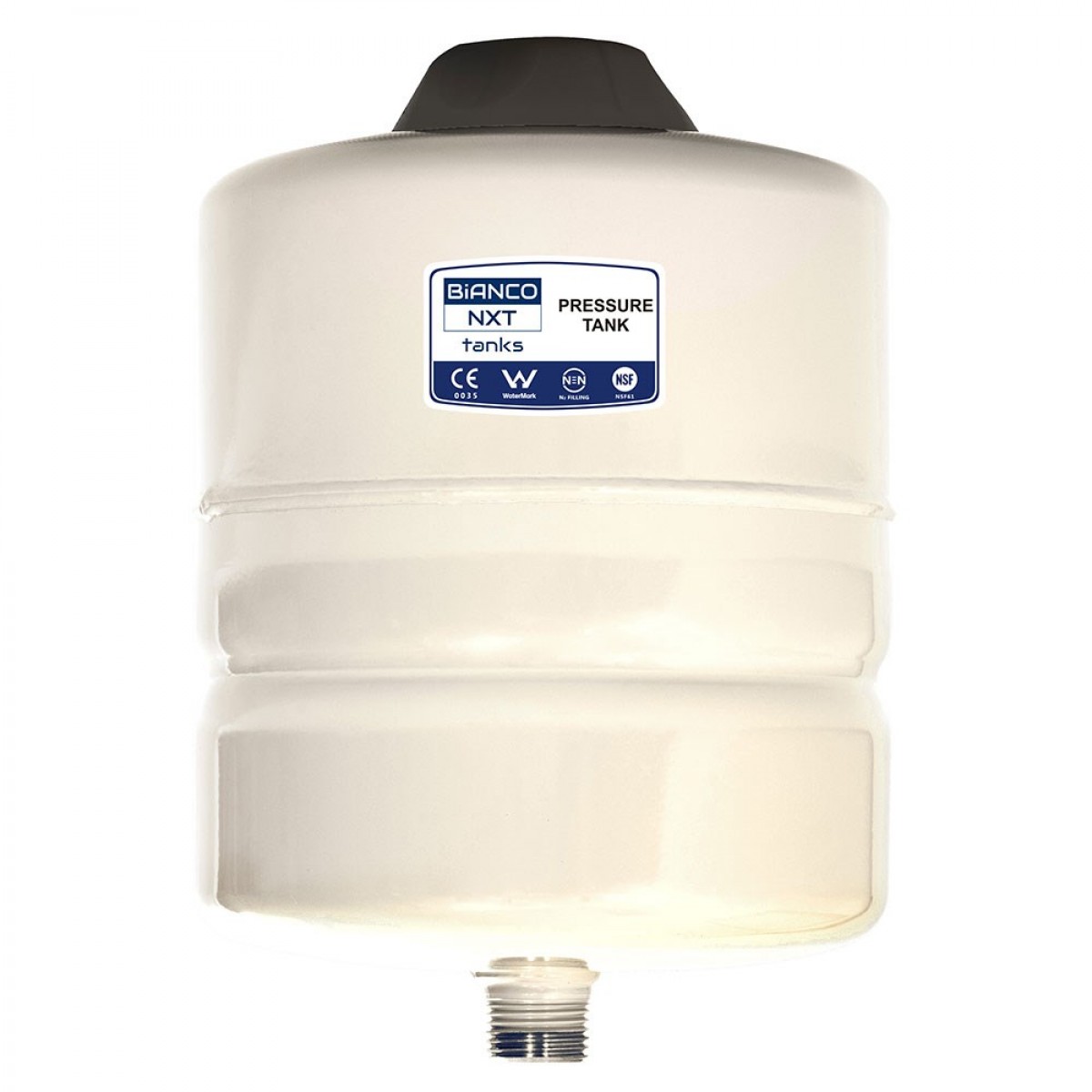

BIA-BPT-8 - Bianco Pressure Tank 8 Litre Vertical Almond 4 Bar Pre-Charge
A$79.00
- Brand: Bianco
- Model: BIA BPT-8
- Availability: In Stock
Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.
A pressure tank is engineered to optimize the performance of your pressure pumping system by storing a volume of pressurised water.
This increases the draw-down in the case of small water demand or leaks thus saving your pump from excessive starts and stops.
A pressure tank protects and extends the life of your pump and will reduce noise and needless power consumption.
Applications
- Booster Systems
- Borehole Systems
- Sprinklers
- Irrigation Systems
- HVAC
- Thermal Expansion
- Water hammer arresting
SPECIFICATIONS
- Nominal volume: 8L
- Nominal Draw-off: 3L
- Continuous max. temp 90°C
- Continuous max. pressure: 10 Bar (145PSI)
- Pre-charge: 4 Bar (58PSI)
- Diameter: 203 mm
- Height: 304mm
- Net Weight: 1.9Kg
- System Connection: GI
- Colour: Almond
FEATURES & BENEFITS
- 304 Stainless Steel water connection
- Corrosion resistant for long life
- UV resistant epoxy coating with a minimum thickness of 30 micron in Almond
- Air valve with sealing cap eliminates leaks
- Food grade approved high-grade diaphragm ACS, AS/NZS4020
Warranty
5 Year Tank Replacement Guarantee
Documents
Operation and Installation Manuals
| Features and technical specification of the product. Please contact us for further information and specifics. | |
| Diameter | 203 mm |
| Draw Off | 3 Liters |
| Height | 304 mm |
| Litres | 8 |
| Port Size Outlet | 1 inch BSPM |
| Pressure Rating | 4 bar |
| Product Type | Pressure Tank |
| Warranty | 5 Years |
