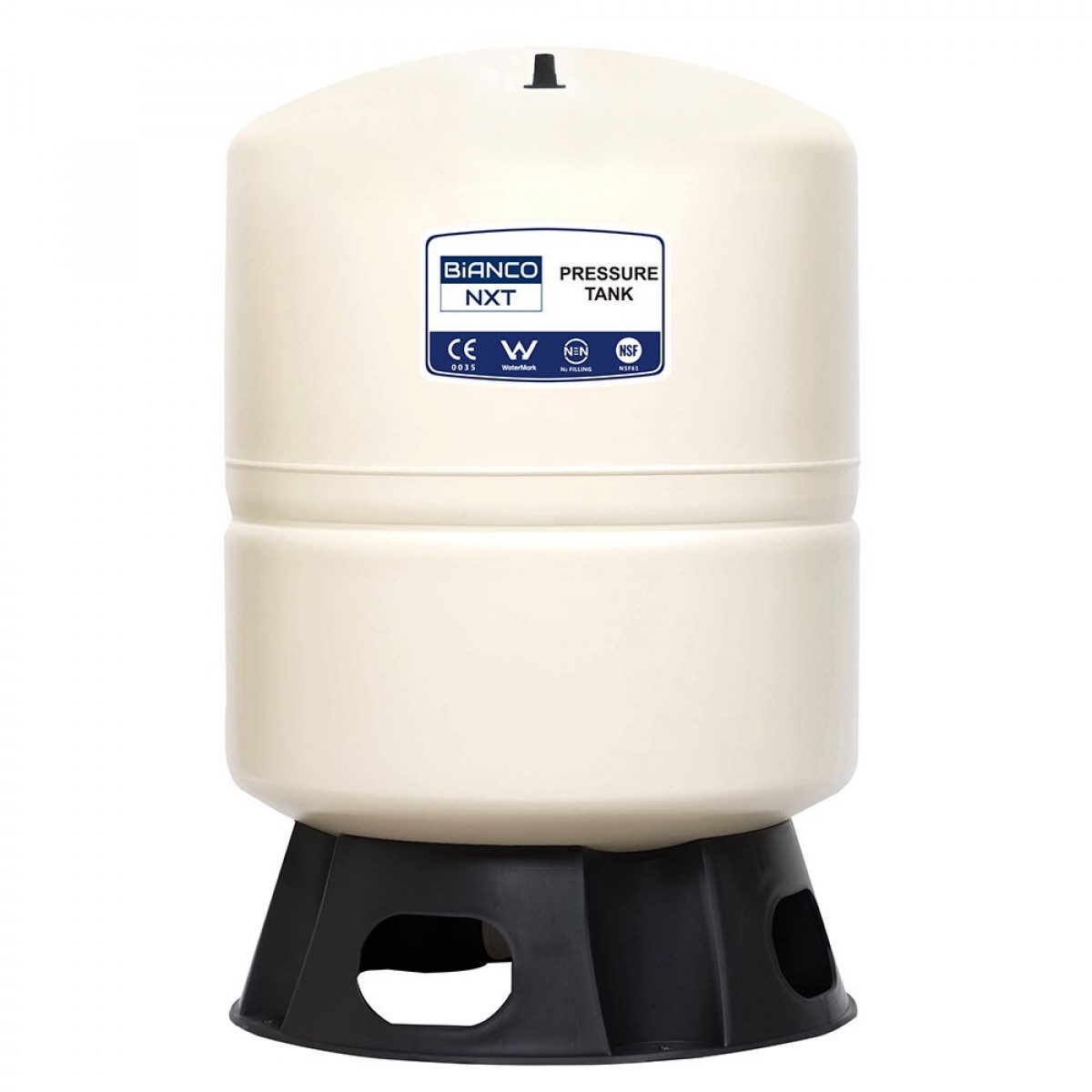

BIA-BPT-60 - Bianco Pressure Tank 60 Litre Vertical Almond 4 Bar Pre-Charge

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

A pressure tank is engineered to optimize the performance of your pressure pumping system by storing a volume of pressurised water.

This increases the draw-down in the case of small water demand or leaks thus saving your pump from excessive starts and stops.

A pressure tank protects and extends the life of your pump and will reduce noise and needless power consumption.

Applications

• Booster Systems

• Borehole Systems

• Sprinklers

• Irrigation Systems

• HVAC

• Thermal Expansion

• Water hammer arresting

SPECIFICATIONS

• Nominal volume: 60L

• Nominal Draw-off: 18L

• Continuous max. temp 90°C

• Continuous max. pressure: 10 Bar (145PSI)

• Pre-charge: 4 Bar (58PSI)

• Diameter: 390 mm

• Height: 592mm

• Net Weight: 9.4Kg

• System Connection: GI

• Colour: Almond

FEATURES & BENEFITS

• 304 Stainless Steel water connection

• Corrosion resistant for long life

• UV resistant epoxy coating with a minimum thickness of 30 micron in Almond

• Air valve with sealing cap eliminates leaks

• Food grade approved high-grade diaphragm ACS, AS/NZS4020

Warranty

5 Year Tank Replacement Guarantee
