BIA-FC150M CAST IRON CENTRIFUGAL PUMP CLEAN WATER 500L/MIN 22M 1500W 240V

A$1,029.00

Brand: Bianco
Model: BIA-FC150M
Availability: In Stock

Qty

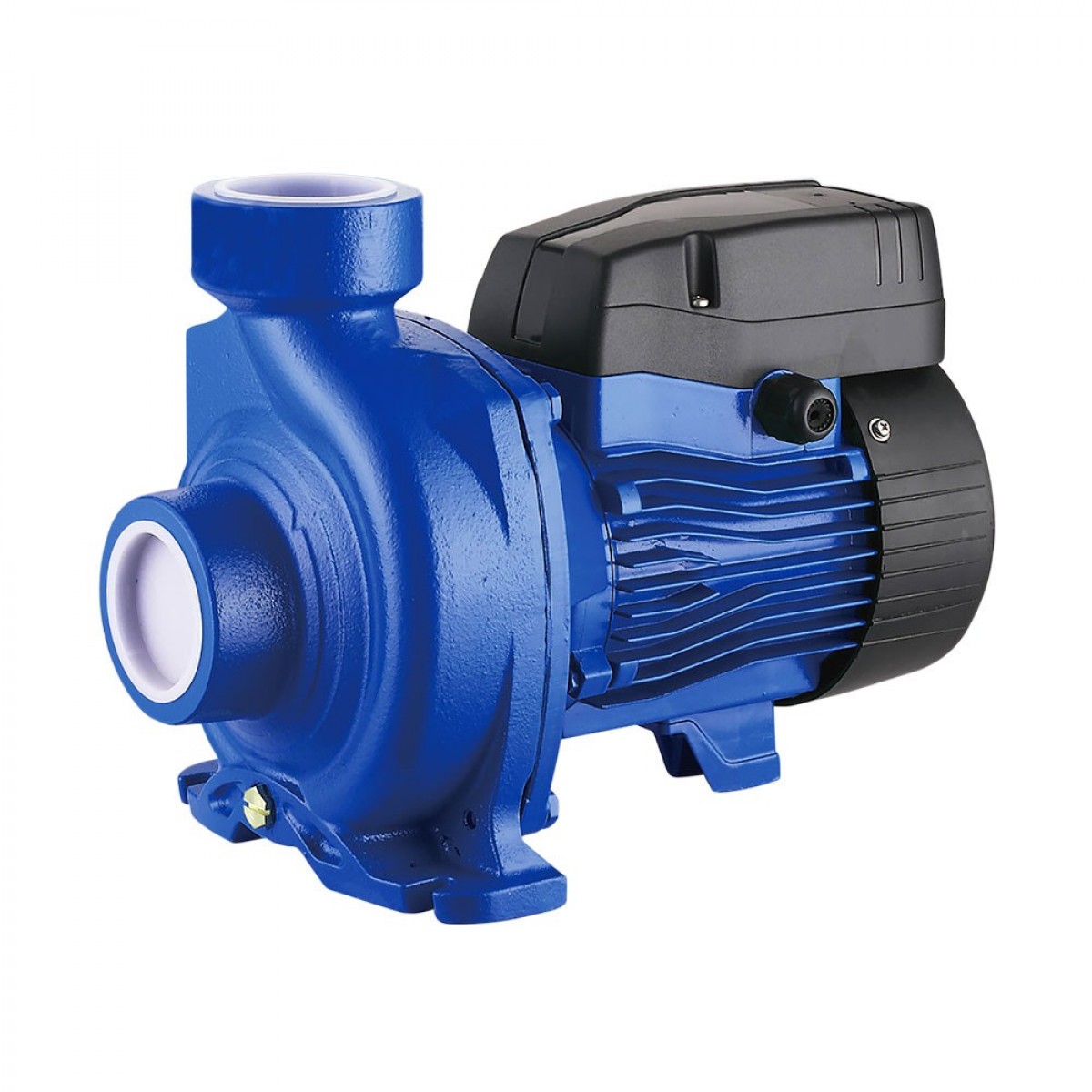

The pump is a horizontal single stage cast iron centrifugal pump supplied wired and ready to install.

Used especially for water transfer.

The pump is characterised by:

• Corrosion resistant cast iron pump body and bracket cover with cataphoresis1 treatment, aluminium pump support and 304 stainless steel impeller and shaft.

• Mechanical shaft seal.

• 240V single phase TEFC motor with in-built auto reset thermal overload.

• Motor support foot.

Applications:

Suitable for industrial wash down, water transfer and tank filling.

Suitable for fire fighting, HVAC, circulation and pressure boosting.

Cataphoresis is an electrochemical coating process for metallic surfaces widely used in the industry due to its penetration and long life, either as a priming coat or finished paint for corrosion resistance.

Package Information:

• 20.7 kg

• L 415mm x W 225mm x H 285mm

Centrifugal Pump
Cataphoresis coating, stainless steel impeller.
1.5kW, 2.0hp, 240V (15A plug), max hd 22m, max flow 500L/m.
Ports 2” BSPF In, 2” BSPF Out.

Warranty

2 Year BIANCO Pumpz Warranty

Features and technical specification of the product. Please contact us for further information and specifics.
Amps	10.0 Amps
Bar	2.2 Bar
Inlet	2 inch Inlet
Outlet size	2 Outlet
Product Type	Single Stage Cast Iron Centrifugal Pump
Power	2.0 Hp, 1.5 kW
Max Head	22 m
Max Flow	500 L/min
Voltage	240 V
Warranty	24 Months
