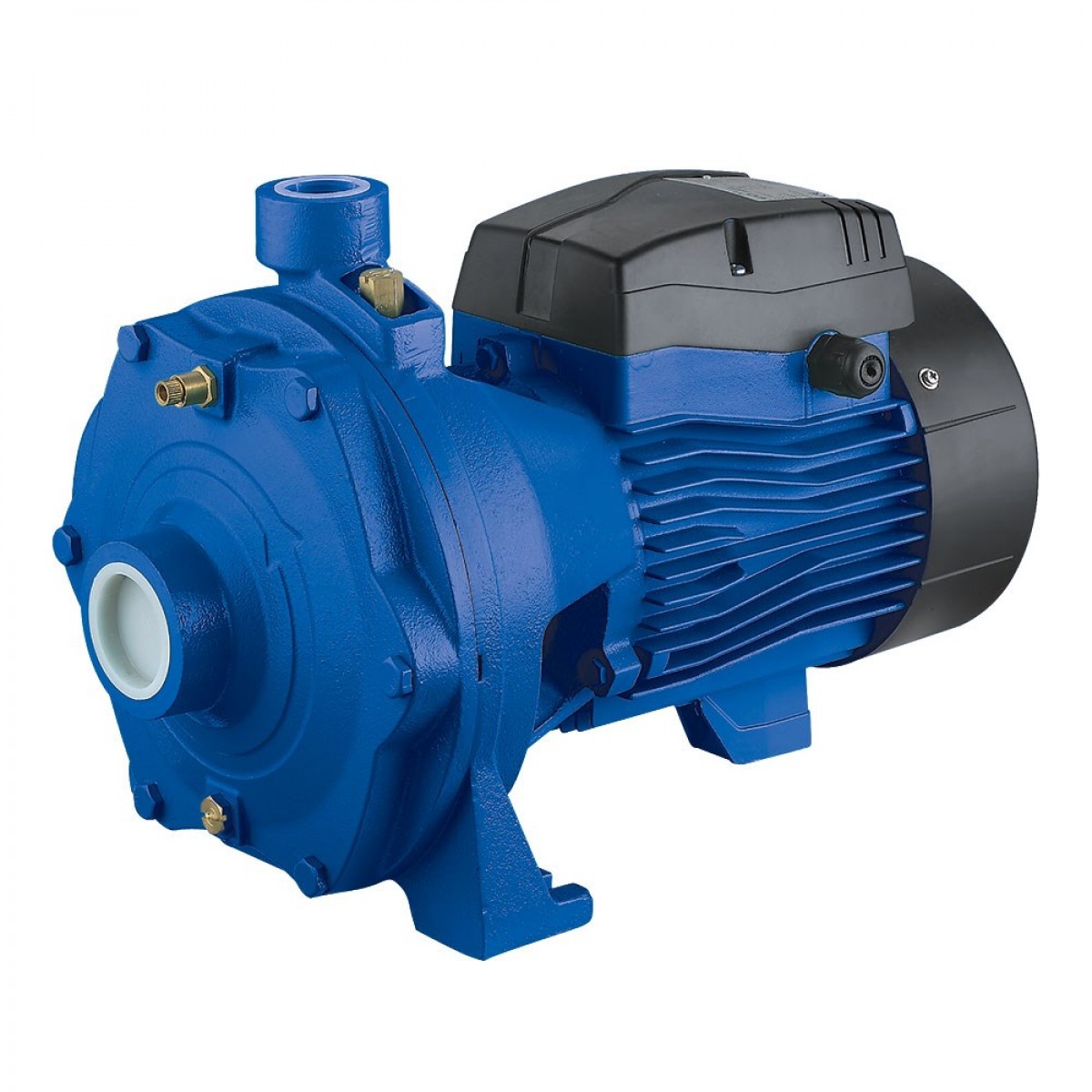

BIA-FCT150M CAST IRON TWIN STAGE CENTRIFUGAL PUMP CLEAN WATER 160L/MIN 57.5M 1500W 240V

A$1,069.00

Brand: Bianco
Model: BIA-FCT150M
Availability: In Stock

Qty

The pump is a horizontal twin stage cast iron centrifugal pump supplied wired and ready to install.

Used especially for water transfer.

The pump is characterised by:

• Corrosion resistant cast iron pump body, bracket cover and support with cataphoresis1 treatment, and 304 stainless steel impeller and shaft.

• Mechanical shaft seal - Carbon/Ceramic

• 240V single phase TEFC motor with in-built auto reset thermal overload.

• Motor support foot.

Applications:

Suitable for industrial wash down, water transfer and tank filling.

Suitable for fire fighting, HVAC, circulation and pressure boosting.

Cataphoresis is an electrochemical coating process for metallic surfaces widely used in the industry due to its penetration and long life, either as a priming coat or finished paint for corrosion resistance.

Package Information:

• 21 kg

• L 445mm x W 255mm x H 300mm

Centrifugal Pump
Cataphoresis coating, stainless steel impeller.
1.5kW, 2.0hp, 240V, max hd 57m, max flow 160L/m.
Ports 1-1/2” BSPF In, 1” BSPF Out.

Warranty

2 Year BIANCO Pumpz Warranty

Features and technical specification of the product. Please contact us for further information and specifics.
Amps	11.5 Amps
Bar	5.75 Bar
Product Type	Twin Stage Cast IronCentrifugal Pump
Power	2.0 Hp, 1.5 kW
Max Head	57.5 m
Max Flow	160 L/min
Voltage	240 V
Warranty	24 Months

BIA-FCT150M CAST IRON TWIN STAGE CENTRIFUGAL PUMP CLEAN WATER 160L/MIN 57.5M 1500W 240V

Documents:

Product Information and Data Sheets

Download Product Information & Data Sheetsv1.0

Product Brochures

Download Brochuresv1.0

Spare Parts Information and Exploded Diagrams

Download Spare Parts Information & Exploded Diagramsv1.0

Operation and Installation Manuals

Download Operation & Installation Manualsv1.0
