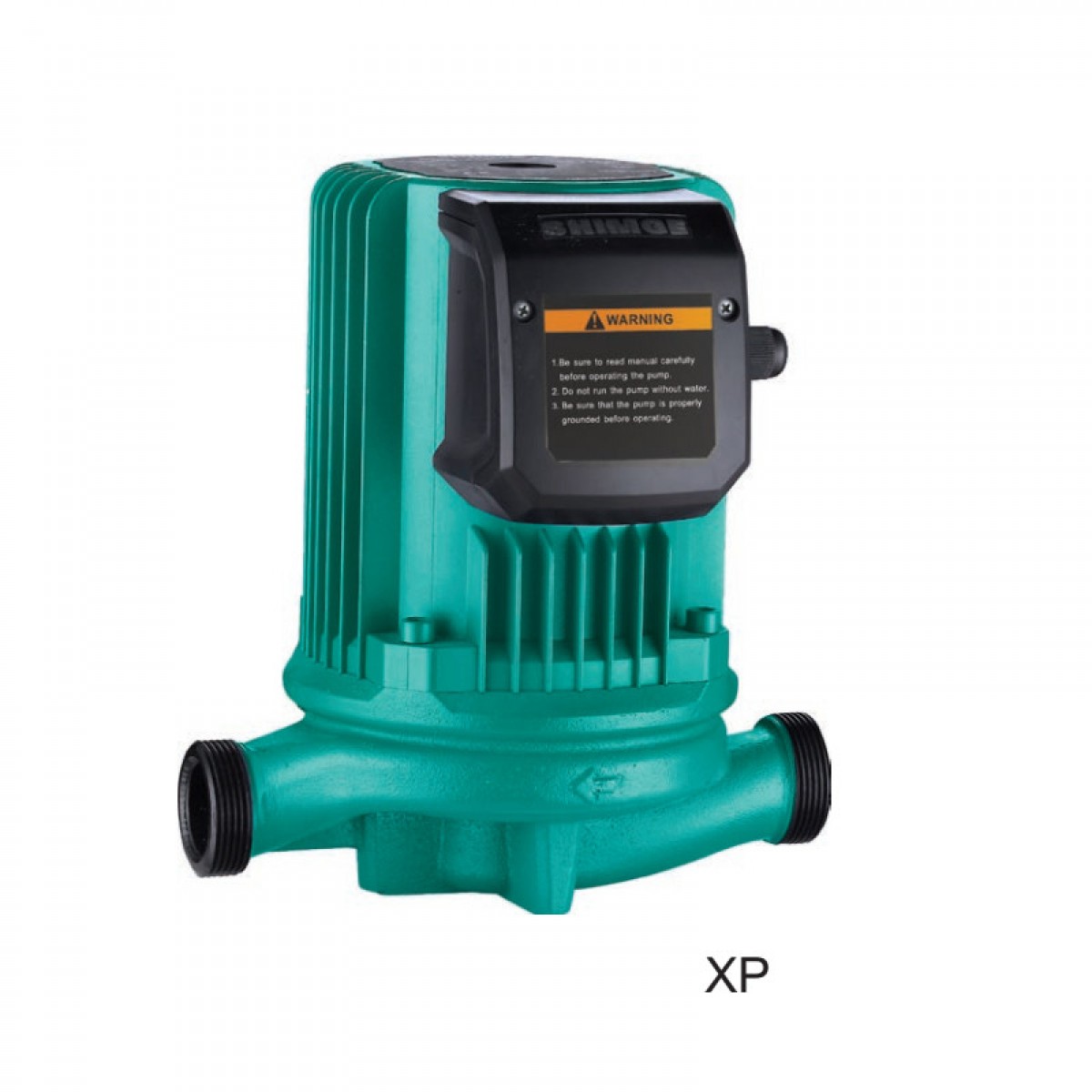

Shimge XP32-12-220 Single Speed Hot Water Circulation Booster Pump Cast Iron Pump Body Low Noise

"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

Pumps with bronze or stainless steel housings are also suitable for use in hot water service systems.

Examples of typical applications are mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc.

FEATURES

• 100% Duty cycle - designed for continuous operation
• In-line booster pump for pressure boosting
• Allows fluid temperature up to 110°C
• Low Noise
• No Leakage
• Easy to operate and maintenance
• 12m max head, Up to 167L/min
• 220V / 50Hz
• Suitable for solar hot water system, Industrial circulation systems, cold water cooling systems and air-conditioning systems
• 1 Year Warranty

APPLICATIONS

The circulation pumps are applied in sun energy, water heaters, industrial circulation systems, heating ventilating, small air conditioners, automatic water supply pressure for household, air source and ground heat source etc.

APPLICATION LIMITS

• Liquid temperature: +2℃~+110℃
• Maximum ambient temperature: +40℃.
• Maximum system pressure: 10bar.
• Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water
• pH: 6.5 to 8.5.

MOTOR

• Protection level: IP44
• Voltage/Herz: 220V; 50Hz
• Insulation class: F
• Installation: with motor axis horizontal

IN THE BOX

• 1 x Hot Water Pump
• 2 x Unions & Gaskets
• 1 x User's Manual

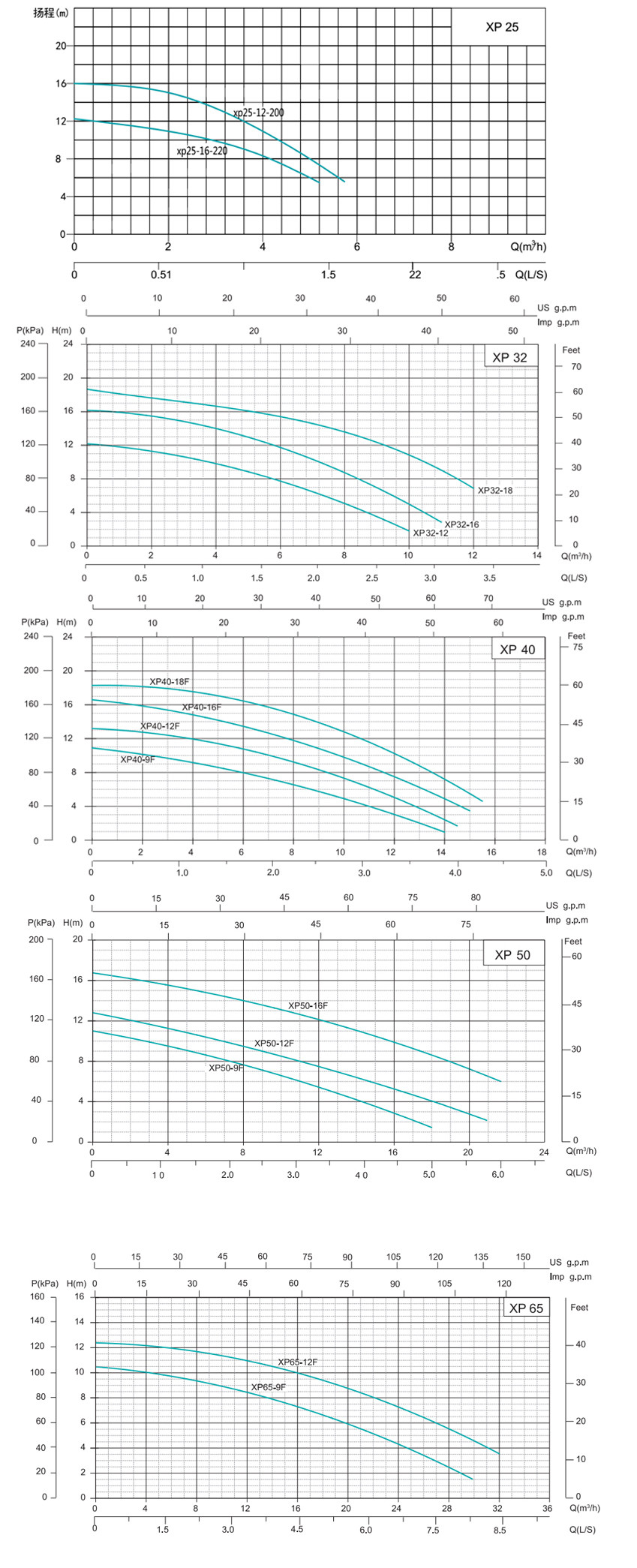

Performance Curve
