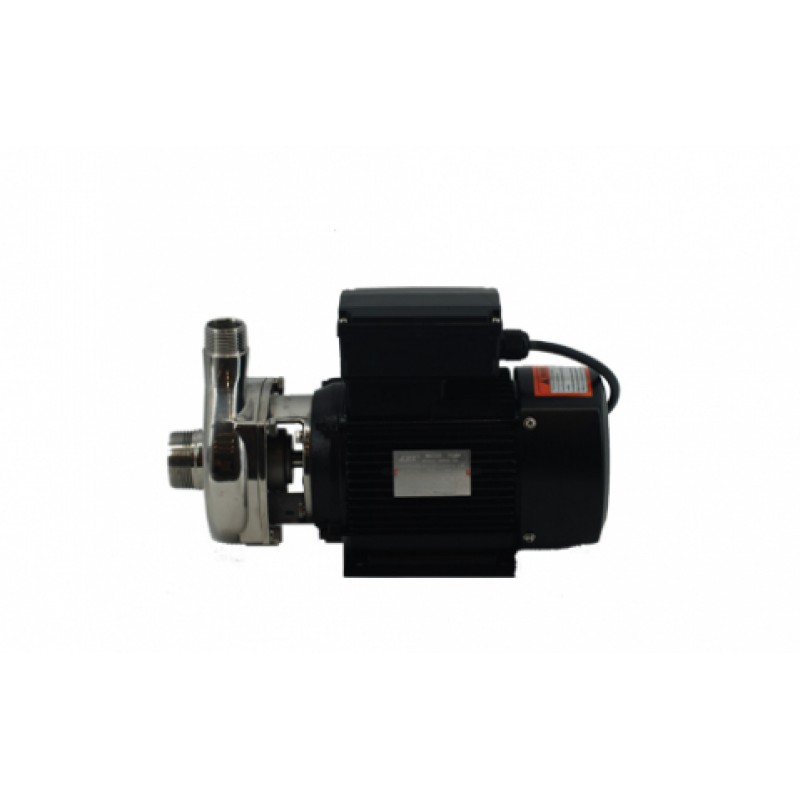

316 Stainless Steel Centrifugal Corrosion-resistant Pump High-temperature Resistant 40LBD-0.75S
A$516.00
- Brand: Shimge
- Model: 40LBD-0.75S
- Availability: In Stock
Description
40LBD-0.75S pump adopts VITON or TEFLON high-temperature resistant mechanical seal, stainless steel wetting parts and connecting frame. With scientific structure, excellent performance, outstanding modeling, the pump has a lot of merits such as reliable corrosion resistance, convenient operation and maintenance, compact structure, low energy consumption, etc. It is widely used for food,beverage, pharmacy, pharmacy, sewage, chemical liquid, electroplating, bleaching, sea water, etc.
Feature
Stainless Steel wetting part
High temperature resistant
Corrosion resistant, widely used for food, beverage, pharmacy, pharmacy, sewage, chemical liquid, electroplating, bleaching, sea water, etc
Compact structure, convenient operation and maintenance
Power: 1.0HP, 0.75KW
Max Head: 16.7m
Max Flow: 131.6 l/min
Maximum volumetric of medium solid: 0.1%
Maximum size of solid particle: 0.2 mm
2 Year Warranty
APPLICATION LIMITS
Max. medium temperature +70℃
Maximum volumetric of medium solid: 0.1%
Maximum size of solid particle: 0.2 mm
pH: 4 to 10
| Features and technical specification of the product. Please contact us for further information and specifics. | |
| Inlet | 1.5 inch |
| Material | Stainless Steel 316 Casting (Pump body) |
| Outlet size | 1 inch |
| Rated speed | 3000 R/MIN |
| Power | 1.0HP, 0.75KW |
| Max Head | 16.7 m |
| Max Flow | 131.6 l/min |
| Voltage | 240V / 50Hz |
| Protection Class | IP44 |
| Warranty | 2 Years |
