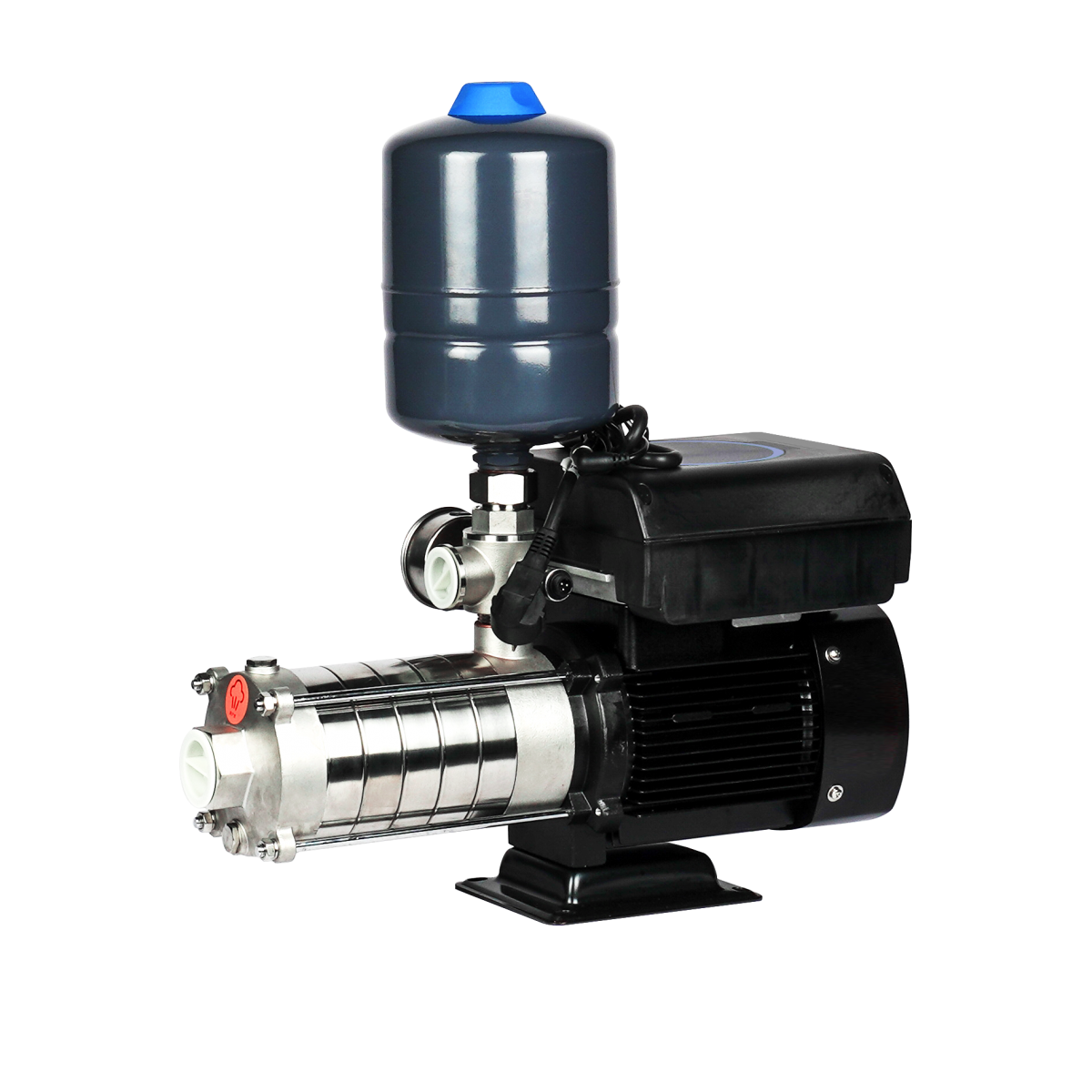

Shimge BWJE2-6 All Stainless Steel Constant Pressure Variable Speed Booster Pump

"SHIMGE" is specialising in manufacturing water pumps for 30 years, and it is one of the most famous listed companies in China. The annual production of water pumps is more than 1.5 million. To make sure the quality of the products, SHIMGE has currently passed ISO9001, ISO14001 and OHSAS18001 certification, introduced excellent performance management in line with GB/T 19580 and established a sound quality assurance system. SHIMGE has equipped an industry-leading physiochemical testing centre, and its delivery performance inspection platform has reached a precision of grade B (grade 1) in the evaluation conducted by an authoritative agency. In addition, its products have passed GS, CE and UL certification , and met the specifications of the RoHS Directive.

SHIMGE has become one of the top brands in the world, unparalleled quality and comparable to Grundfos & Will.

Shimge fully integrated intelligent variable frequency pump BWJE2-6 is a new generation of pressurized water supply equipment newly developed by us which highly integrates variable frequency controller, water pump and pressure tank; with handsome appearance, the pump has reached the international advanced level; provided with artificial intelligence, it can adjust automatically to meet the user’s requirement for constant pressure and variable frequency water supply, so as to keep constant the pressure of water supply network and maintain the whole system at the optimal energy-efficient state.

FEATURES

• All Stainless Steel, long life service
• Frequency converter: With the protection class of IP65, it is safe and reliable
• High integration, easy to install and space saving
• Constant pressure with integrated speed control
• Convenient and simple operation
• Constant-power operation
• Temperature range of medium: 0℃~+60℃
• Power: 0.75 kw
• Max head: 56 m
• Max flow: 33 l/min
• Inout: Single phase, 50Hz/60Hz 220v/230v
• Output: Three phase 0-50Hz 220v
• 2 Year Warranty

APPLICATION FIELDS

• Domestic water supply: Roof pressurization for  high-rise building, apartment, and villa, etc
• Public places: School, restaurant, station, hospital,  and gymnasium, etc
• Commercial buildings: Hotel, office building, and  department store, etc
• Irrigation: Farm, orchard, and park, etc
• Industry: Manufacturing, food industry, industrial  water supply and other places requiring constant pressure water supply

OPERATION CONDITIONS

• Operating voltage AC220V±10%, 50HZ, with interphase unbalance less than 2%
• Maximum ambient temperature: +60 ℃
• The altitude at the installation site is no more than  1000m
• Ambient humidity 10-90%RH (non-condensing)
• There is no medium with explosive risk in the ambient  air, and there is no gas or conducting dust which is enough to corrode metal  and damage insulation in ambient media. The product is designed to operate in  the environment with the pollution class II

FUNCTIONS

• When water is used, the system is kept at constant  pressure by variable control; when water is not used, the system pressure is  automatically maintained with the pump shut down
• The operating pressure fluctuation range of variable  frequency pump is no more than 0.01MPa
• The pump shuts down if it idles without water
• The pump has the function of detecting such faults as  disconnection, overcurrent, overload, and earthing

IN THE BOX

• 1 x Variable Speed Pump
• 1 x Warranty Card
• 1 x User's Manual
